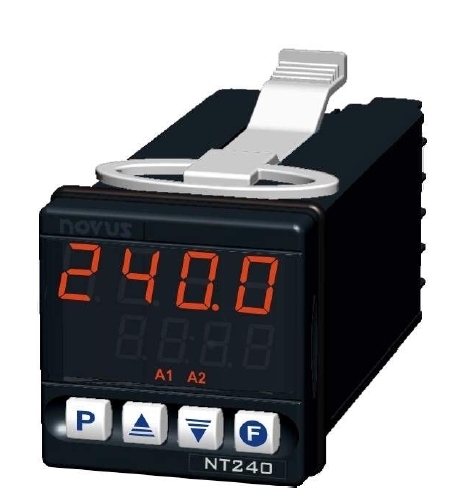

Programmable Timer NT240
Heastern Industries now have available in their range, the NOVUS NT240 programmable digital timer.
This timer can easily be configured to switch at pre-programmed time intervals , activating an output according to a predefined mode of operation and user chosen time interval.
The output is both in relay [ SPST] as well as pulsed voltage [ 5V / 25 mA ], and is switched at pre-programmed intervals according to eleven different timing functions.
INPUT types NPN / PNP as well as digital NO / NC is standard - to perform specific desired contol timed functions.
The front dual 4-digit LED display shows the running time, elapsed time or time remaining - in resolutions from 0,01 sec to 99 hours.
Other features include :-
* Accuracy: 0,05% of displayed time
* Time base: 7 scales, from 99.99 seconds to 9999 hours
* UP or DOWN time counting (decimal or hour:minute:second)
* Power: 100 to 240 V AC or DC as well as 24V
* Operating environment: 5 to 50 degC, 30 to 80% humidity
* Dimensions: 48 x 48 x 110 mm. Panel cutout: 45.5 to 45.5mm
* Silicone rubber keypad
* Front panel: IP65, Polycarbonate UL94 V-2
* Rated CE and UL
Download datasheet >>
This timer can easily be configured to switch at pre-programmed time intervals , activating an output according to a predefined mode of operation and user chosen time interval.
The output is both in relay [ SPST] as well as pulsed voltage [ 5V / 25 mA ], and is switched at pre-programmed intervals according to eleven different timing functions.
INPUT types NPN / PNP as well as digital NO / NC is standard - to perform specific desired contol timed functions.
The front dual 4-digit LED display shows the running time, elapsed time or time remaining - in resolutions from 0,01 sec to 99 hours.
Other features include :-
* Accuracy: 0,05% of displayed time
* Time base: 7 scales, from 99.99 seconds to 9999 hours
* UP or DOWN time counting (decimal or hour:minute:second)
* Power: 100 to 240 V AC or DC as well as 24V
* Operating environment: 5 to 50 degC, 30 to 80% humidity
* Dimensions: 48 x 48 x 110 mm. Panel cutout: 45.5 to 45.5mm
* Silicone rubber keypad
* Front panel: IP65, Polycarbonate UL94 V-2
* Rated CE and UL
Download datasheet >>
The rugged yet sleek Non-contact Infrared Temperature Calibration Checker offers a fast, low cost and highly accurate way to ensure infrared temperature sensors are operating within calibration limits, either in the lab or on the shop floor.
Two models are available offering two different calibration temperatures. The FTK 95 heats up to 95degC, and the FTK 120 goes to 120degC.
FTK 95 and FTK 120 reach and stabilise at these temperatures in approximately 12 minutes and have an LED to show when they are up to the correct temperature.
Heastern Industries announce yet another first in the field of infra-red thermometry, the new PyroEpsilon series non-contact temperature sensors.
The PyroEpsilon series is a range of high quality, low cost, compact sensors, which measure the temperature of inaccessible or moving objects and materials. They can measure temperatures from -20degC to 500degC, accurately and consistently, with an outstanding response time of 240 ms.
